Adjustable Parallel Tube Connector for Different Diameters | NOA Aluminium

The adjustable parallel tube connector allows an additional tube to be mounted parallel to an existing tube. It can be used, for example, to install masts, antenna mounts, Starlink mounts or other equipment on existing railing stanchions, equipment carriers or tube structures.

The main advantage of this connector is that the two tubes do not have to have the same outside diameter. Interchangeable bushes allow each side of the connector to be adapted to the respective tube diameter. For example, a 30 mm tube can be mounted to an existing 25 mm railing stanchion.

Depending on the length and load of the additional tube, two parallel tube connectors are generally used to provide a stable parallel installation.

Standard Sizes and Custom Combinations

The parallel tube connector is available as standard for the following tube diameters:

• 25 mm
• 30 mm
• 32 mm
• 38 mm

Each standard version is supplied for two tubes with the same outside diameter. For example, both sides of the 25 mm version are configured for 25 mm tubes.

Do you need to connect two tubes with different outside diameters? This is also possible. If you require a combination such as 25/30 mm or another configuration, please contact us before ordering. We will configure the parallel tube connector to suit your tube diameters.

Versatile Applications

The parallel tube connector is suitable for mounting:

• additional masts and tubes
• antenna and equipment mounts
• Starlink mounts
• additional tubes on railing stanchions or equipment carriers
• custom tube constructions
• additional supports for Outlaying Frames

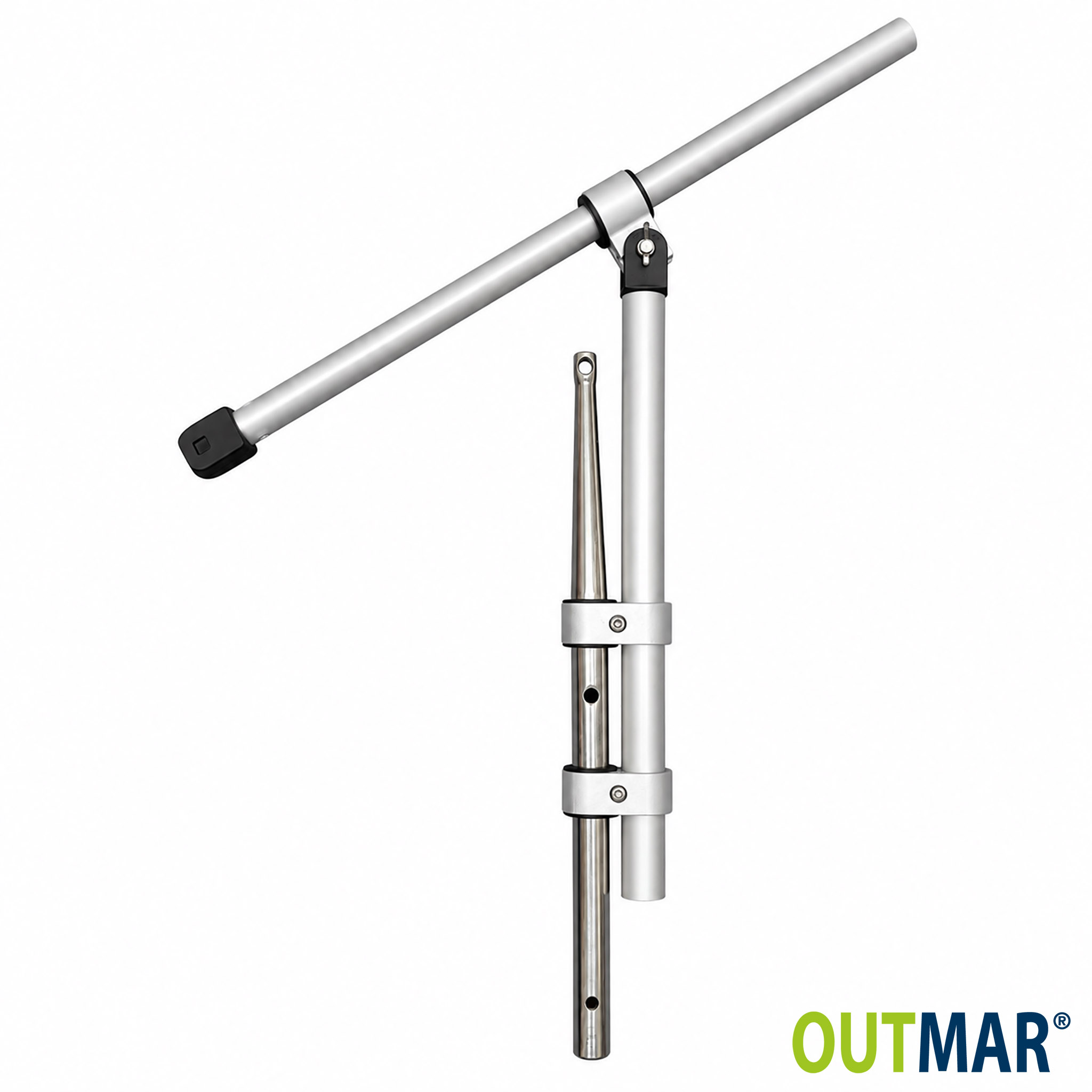

The connector can also provide a practical solution when installing a NOA Outlaying Frame. If the existing railing stanchions cannot be removed, an additional support can be mounted parallel to the existing stanchion. Different tube diameters can be accommodated using the appropriate combination of bushes.

Please note: If you require a custom tube diameter or a combination of two different diameters, please contact us before ordering.
