Solar Panel Mount Camper Roof – Adhesive Kit

Secure solar panel installation – no drilling required

With the UNIFIX 1.C mounting kit from Uniteck, you can securely and permanently install solar panels on the roof of your campervan or motorhome – without drilling. The four corner brackets are bonded directly to the surface and allow for a quick and easy installation in just three steps: clean, position and bond. All necessary components are included in the kit – including stainless steel screws, surface preparation primer and adhesive.

For 30 mm and 35 mm framed solar panels

The kit is available in two versions and fits many common solar panels:

• 30 mm frames (e.g. Victron)
• 35 mm frames (e.g. Uniteck and many other brands)

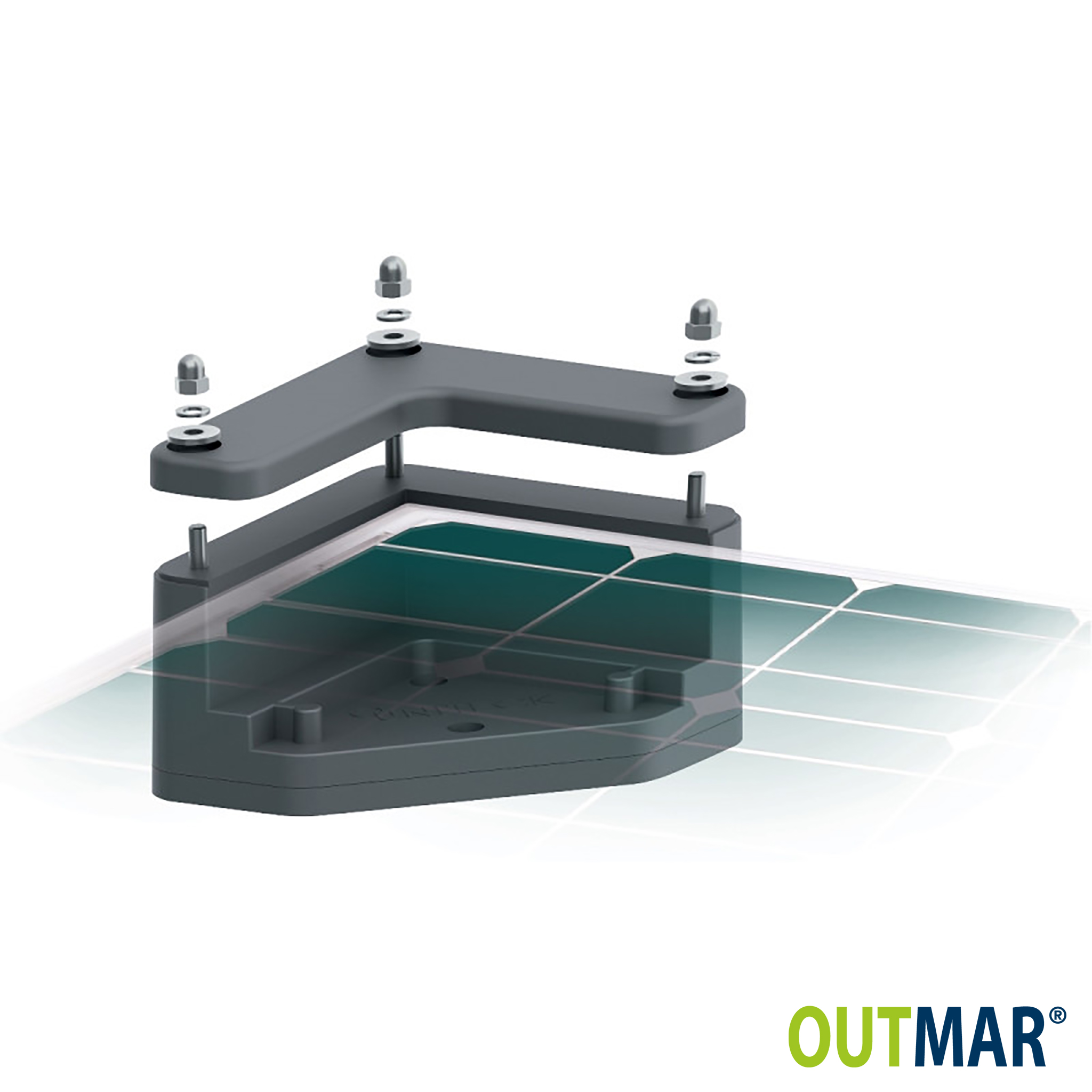

Easy Change system – flexible and maintenance-friendly

The UNIFIX 1.C system allows you to remove the solar panel at any time:

• easy cleaning and maintenance
• quick replacement when needed

Ideal for camper roof installation

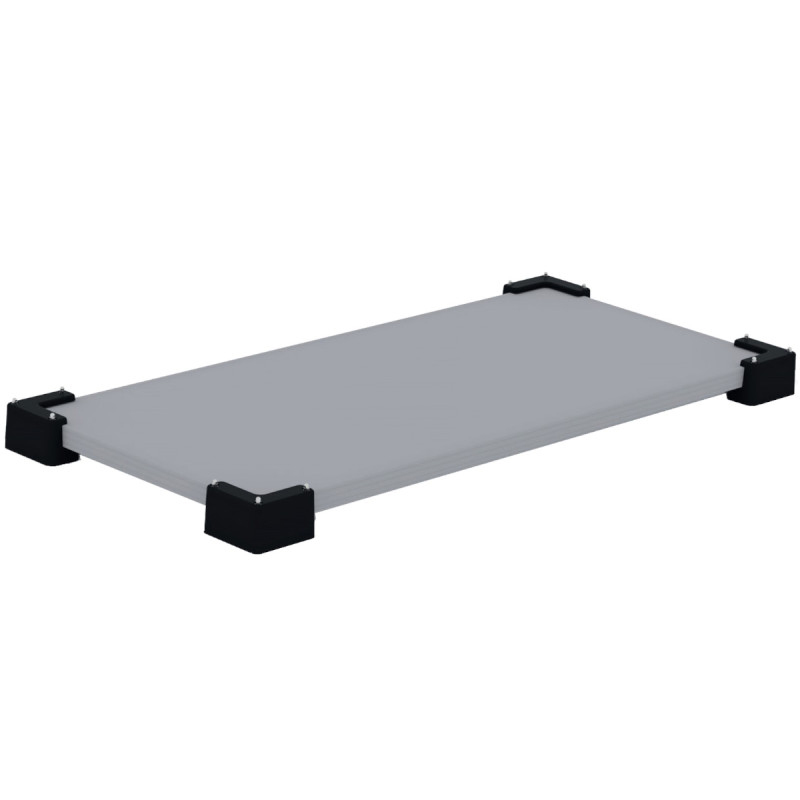

The compact corner brackets require minimal space and allow installation even on roofs with skylights, vents or other equipment.

The brackets hold the panel slightly above the roof surface, providing:

• improved airflow
• up to 30% better heat dissipation

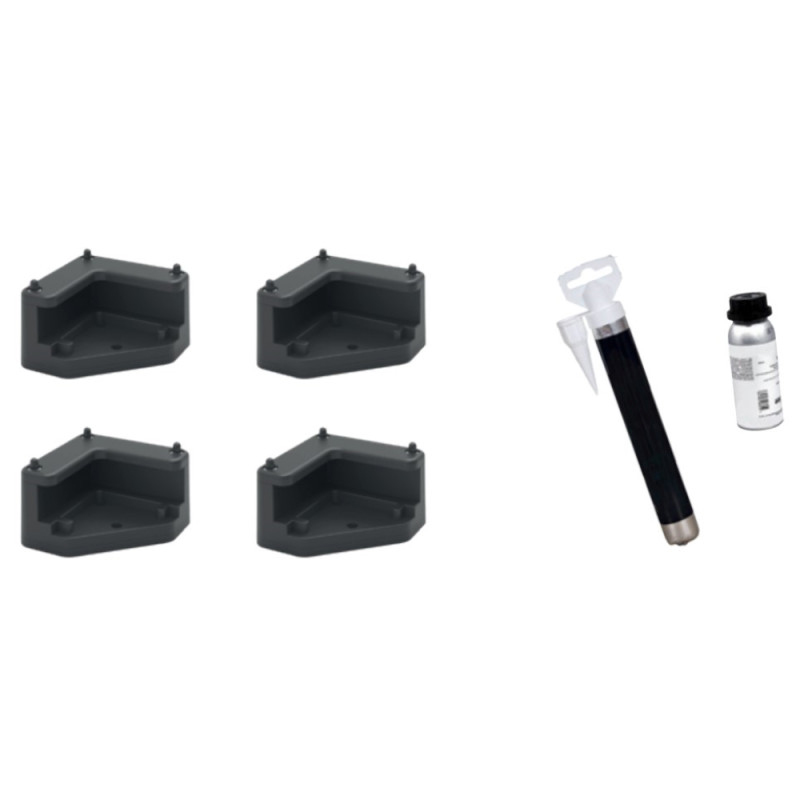

In the box

• 4 × corner brackets
• 4 × spacers
• 4 × locking elements
• stainless steel mounting hardware
• 1 × Sikaflex 522 adhesive (100 ml)
• 1 × SIKA Primer 507 (surface preparation)

Advantages

• no drilling required
• quick and easy installation (clean & bond)
• suitable for many solar panels
• removable panel (Easy Change)
• improved cooling and efficiency
• durable construction for outdoor use

Technical specifications

• Material: glass fibre reinforced polyamide
• Dimensions: approx. 125 × 125 × 85 mm
• Weight: approx. 340 g
• Application: flat surfaces (camper and vehicle roofs)
